AVS - MVS
Submersible Axial / Mixed Flow Pumps
APPLICATIONS
- Drainege rainwater
- Irrigation water
- Industry water
- Water conservancy
- Flood Control
- Power plant cooling systems
ADVANTAGES
- High efficiency, capacity and head
- Simple construction, less space ned in pumpstations.
- Low level of noise
- Full and sofisticated electric motor protection
OPERATION DATA
- Max. temperature of medium: 40oC
- Density of medium up to 1.05x103 Kg/m3
- Medium PH values 5~11
- Submersible depth up to 10 m
TECHNICAL DATA

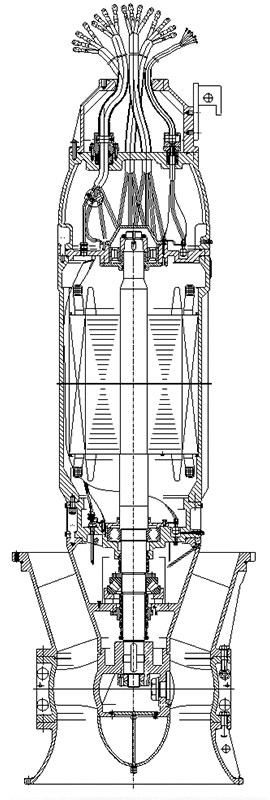

- Strong and compact structure with single pump - motor shaft designed for vertical instalation
- Submerible motor , guide vane body, impeller, water inlet horn .
- Sealing with two mechanical seals
MATERIALS
- Motor,pump casing,body : GG25
- Impeller, impeller blades: stainless steels or bronze
- Shaft AISI 420
- bolts and nuts: AISI304
- Upper mechanical seal: WuC/Wuc
- Lower mechanical seal : Sic/Sic
ELECTRIC MOTOR
- 3 Phs electric squirrel cage induction motor of 400/440 V - 50/60 Hz
- Enclosure Protection IP68.
- Insulation Class F
- Cable length: 10 m.
